// Blinn-Phong模型

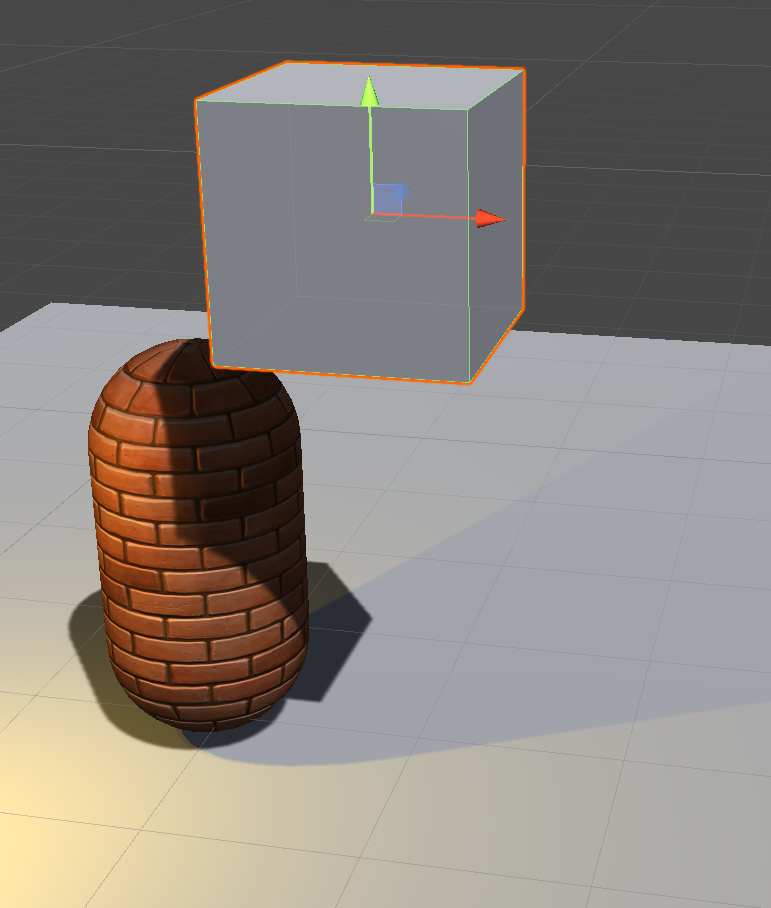

//编写两个Pass分别来接收和投射阴影
Shader "Example/Blinn_Phong" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_BumpMap ("Normal Map", 2D) = "bump" {}
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" "Queue"="Geometry"}

		Pass {

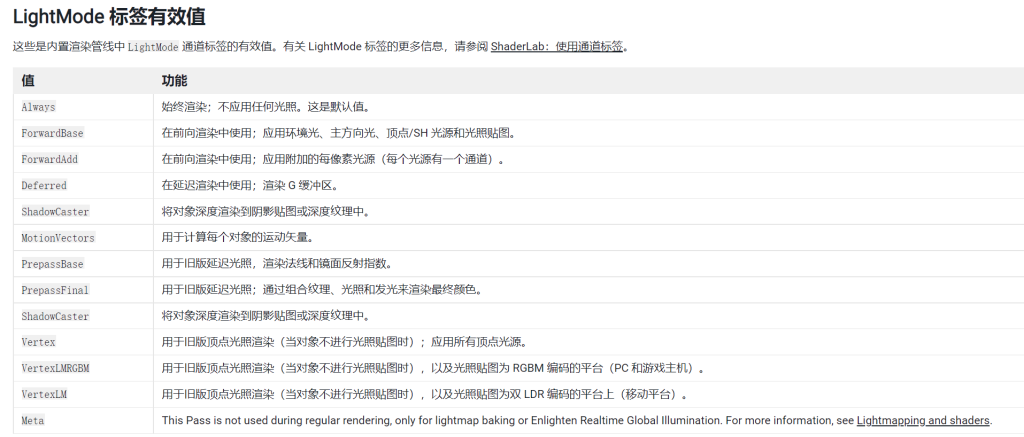

			Tags { "LightMode"="ForwardBase" }

			CGPROGRAM

			#pragma multi_compile_fwdbase

			#pragma vertex vert
			#pragma fragment frag

			#include "UnityCG.cginc"
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
                float4 TtoW1 : TEXCOORD2;
                float4 TtoW2 : TEXCOORD3;
//填入的数字是一个可用的插值寄存器的索引
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
			 	o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				TANGENT_SPACE_ROTATION;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
                fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
                fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
                fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

                o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
                o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
                o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

  				TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);

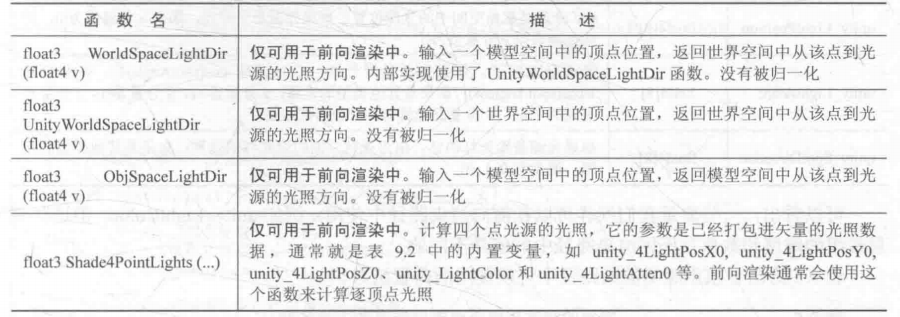

				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;

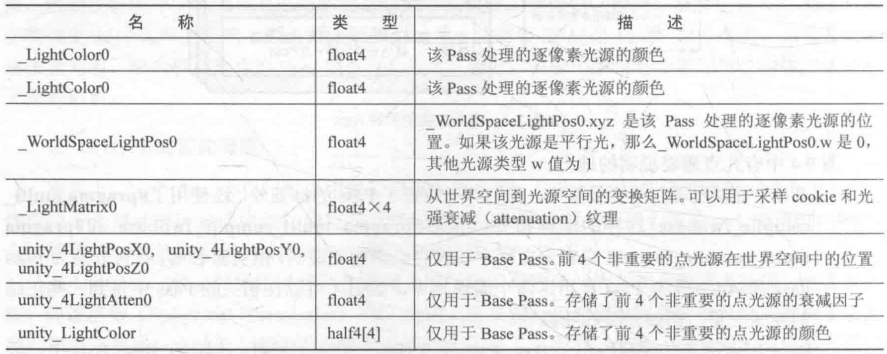

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

			 	fixed3 halfDir = normalize(lightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4(ambient + (diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}

		Pass {
			Tags { "LightMode"="ForwardAdd" }

			Blend One One

			CGPROGRAM

			#pragma multi_compile_fwdadd
			#pragma vertex vert
			#pragma fragment frag

			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex;
			float4 _MainTex_ST;
			sampler2D _BumpMap;
			float4 _BumpMap_ST;
			float _BumpScale;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
                float4 TtoW1 : TEXCOORD2;
                float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
			 	v2f o;
			 	o.pos = UnityObjectToClipPos(v.vertex);

			 	o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
			 	o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
                fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
                fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
                fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

  				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
			  	o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
			  	o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

			 	TRANSFER_SHADOW(o);

			 	return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;

			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

			 	fixed3 halfDir = normalize(lightDir + viewDir);
			 	fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);
			//使用内置宏进行光照衰减和阴影的计算
				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);

				return fixed4((diffuse + specular) * atten, 1.0);
			}

			ENDCG
		}
	}
	FallBack "Specular"
}
